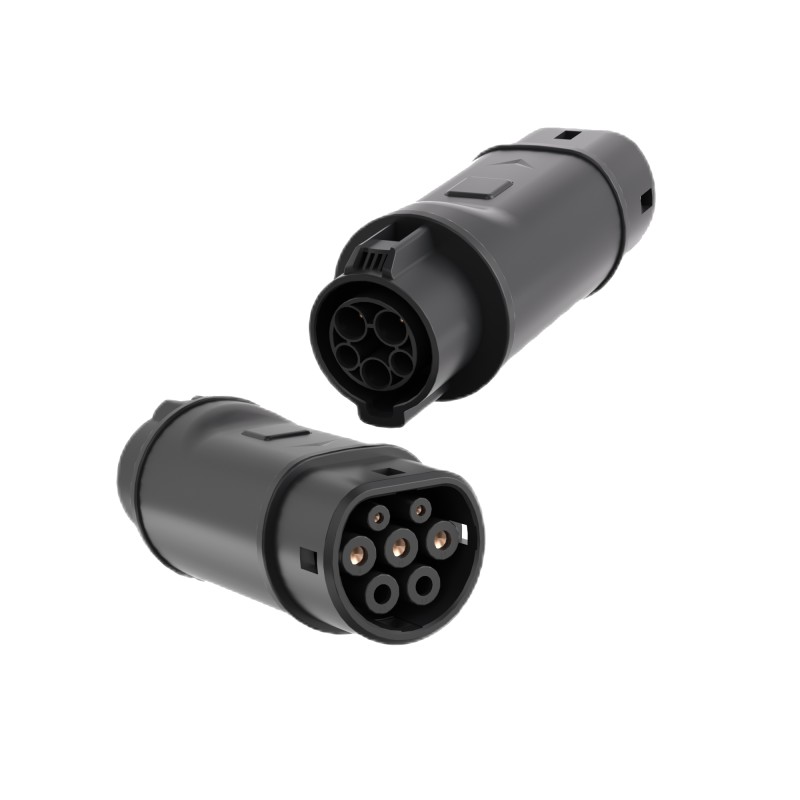

AC Charging Adapter (Type 1 - Type 2): Exceptional Performance, Peace of Mind

The ZH1 AC Charging Adapter (Type 1 - Type 2) is designed to solve the compatibility problems of electric vehicle charging interfaces. With its outstanding performance parameters and reliable safety design, it is the ideal choice for your charging needs during travel.

Powerful Power Transmission, Wide Voltage Adaptability

The working voltage ranges from AC 110V to 250V, ensuring stable connection whether in areas with low - voltage old power grids or modern communities with stable voltage. The rated operating current can reach up to 32A MAX, with a power output of up to 7.2kW (calculated at 220V), significantly reducing charging time. Meanwhile, the temperature rise is controlled within <50K. Even during long - term continuous operation, it can maintain a low temperature, reducing energy consumption loss and ensuring efficient and stable charging. In addition, the withstand voltage of 1500V effectively isolates external current interference, providing solid electrical safety for the charging process.

High - Quality Materials, Durable and Reliable

The shell is made of PC + PA66 + GF25% composite material, which has high strength, high toughness, and excellent flame - retardant properties. It can withstand impacts, friction, and high temperatures during daily use. The metal guide posts adopt a copper post silver - plating process, greatly improving conductivity, reducing resistance, and minimizing power loss. They also have strong corrosion resistance, ensuring long - term stable power transmission. The coupled insertion force is precisely controlled between 45N and 100N, providing a comfortable grip and easy insertion and removal. It also effectively prevents poor contact caused by too loose insertion force or component damage caused by too tight force. The mechanical life exceeds 10,000 times, and it is not easy to wear out even with frequent use.

Adaptable to Diverse Environments, Worry - Free Use All Day

The working temperature range is - 30℃ to + 50°C (-22°F to + 122°F), enabling normal operation in extremely cold northern regions or hot southern areas. The adaptability to a working humidity of 5% - 95% means that even in humid and rainy areas, there is no need to worry about internal circuit moisture. The working altitude is ≤2000 meters, meeting the usage requirements of most cities and mountainous areas. The protection level is 可选 IP55/IP67. IP55 effectively prevents dust and withstands low - pressure water jets from all directions; IP67 provides complete dust protection and short - term water immersion protection. Whether in a dusty construction site parking lot or an outdoor environment caught in a sudden rainstorm, it can handle the situation calmly and ensure charging safety.

Authoritative Certification, Quality Assurance

It has passed the FCC certification. Strictly following international standards, the product's electromagnetic compatibility, electrical safety, and other aspects have reached the leading level in the industry, and its quality is trustworthy.

Ingenious Design, Portable and Easy to Use

The product size is 166.7mm in length * 70.0mm in width * 69.9mm in height, which is compact and lightweight for easy carrying. The inner box size is 186.0mm in length * 75.0mm in width * 75.0mm in height, and the outer box size (for 10 pieces) is 400.0mm in length * 210.0mm in width * 175.0mm in height, facilitating storage and transportation. The net weight of a single product is ≤1KG, so it can be easily placed in the car trunk or carried around without any burden.

Features:

*Efficient Power Delivery: This Type 1 to Type 2 EV charging adapter delivers up to 32A (7.2 kW) of power, ensuring a fast and efficient charging experience for your electric vehicle.

*Safety Certifications: The adapter has passed CE and TUV certifications, providing peace of mind with its robust safety features and protection class IP54, suitable for outdoor use.

*High Quality Construction: Made from a copper alloy with a silver-plated, this adapter guarantees excellent durability and electrical conductivity. Its housing is crafted from high-strength ABS material for added longevity.

*Lightweight and Portable: Designed for convenience, the adapter is lightweight and compact, making it easy to carry on your travels without adding unnecessary bulk.

*Wide Compatibility: This adapter is compatible with a variety of Type 2 electric vehicles, including for BMW, for Ford, for Hyundai, and etc. making it a versatile solution for many EV owners.

Specifications:

Part Name:Type 1 to Type 2 Adapter Cable

Material:Copper alloy, ABS

Size:As shown

Color:Black

Rated Current: 32A

Rated Power: 7.2KW

Voltage:380V

Working Temperature:-30℃~50℃

Fitments:This adapter is compatible with a variety of Type 2 electric vehicles

Package Content:

1*Type 1 to Type 2 Adapter

Tags: Type 1 to Type 2, charging adapter, 7.2kW charging, electric vehicle accessories, FCC - certified products
